The Advanced version FlexBench integrates in-vehicle communication modules, allowing it to operate independently without third-party communication tools. It is best suited for HIL testing applications, delivering a complete and standalone solution for advanced system-level validation.

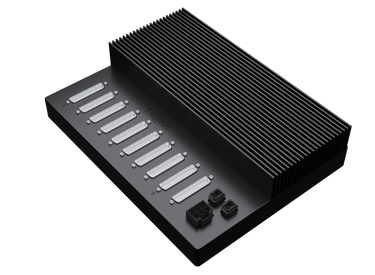

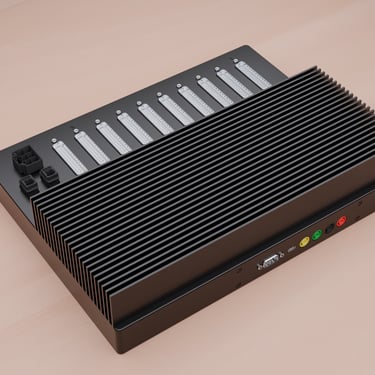

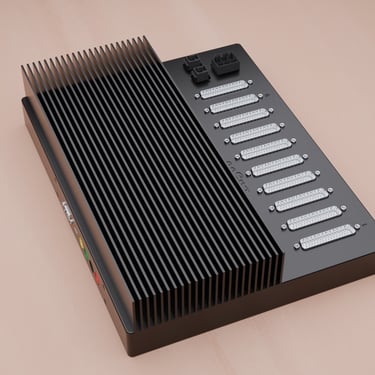

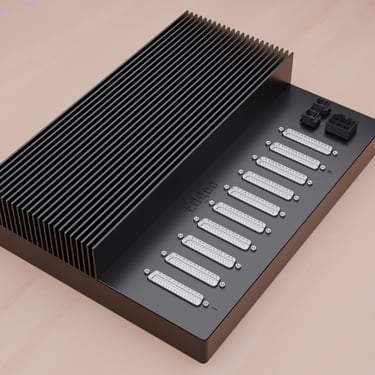

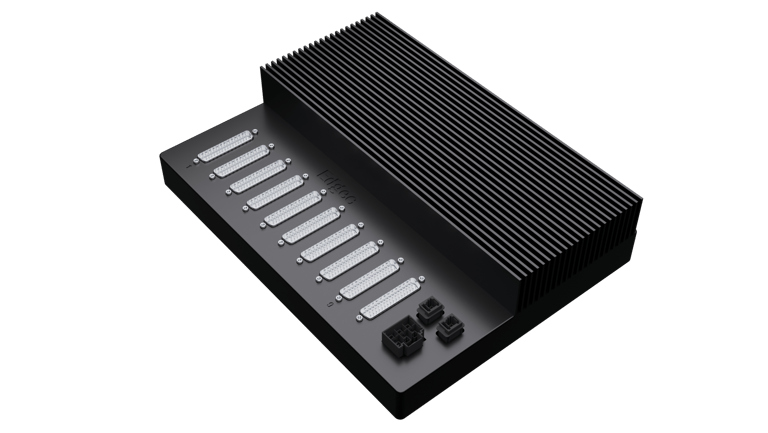

FlexBench Advanced
Order Code: M00024-001
support 4 weeks free trial
support international shippment
support change based on customized requirement
$TBD USD
（excl. tax）

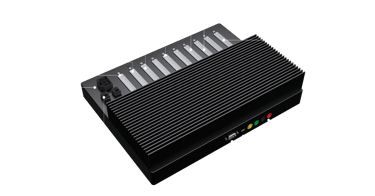

Product Overview
Features configurable by software
Flexible Input
Suitable for HSD, LSD, SPIDER, eFuse and H-Bridge
Simulated by E-load, support fault injection
Multiple Output Mode
Load Simulation
Sleep Current
Integrate 24-bit ADC for easy measurement
Digital high, low or PWM, flexible configurable
KL30 Control
Standalone HIL
RS232 for external power supply adjustment
Standalone solution, USB communication to PC

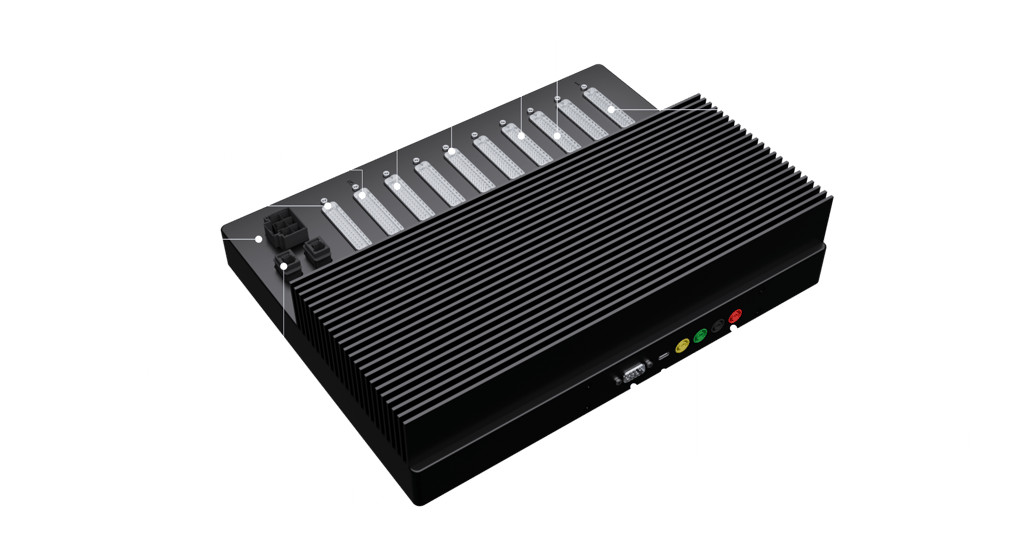

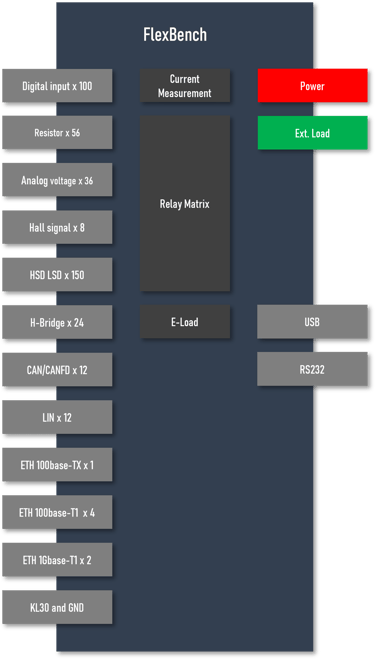

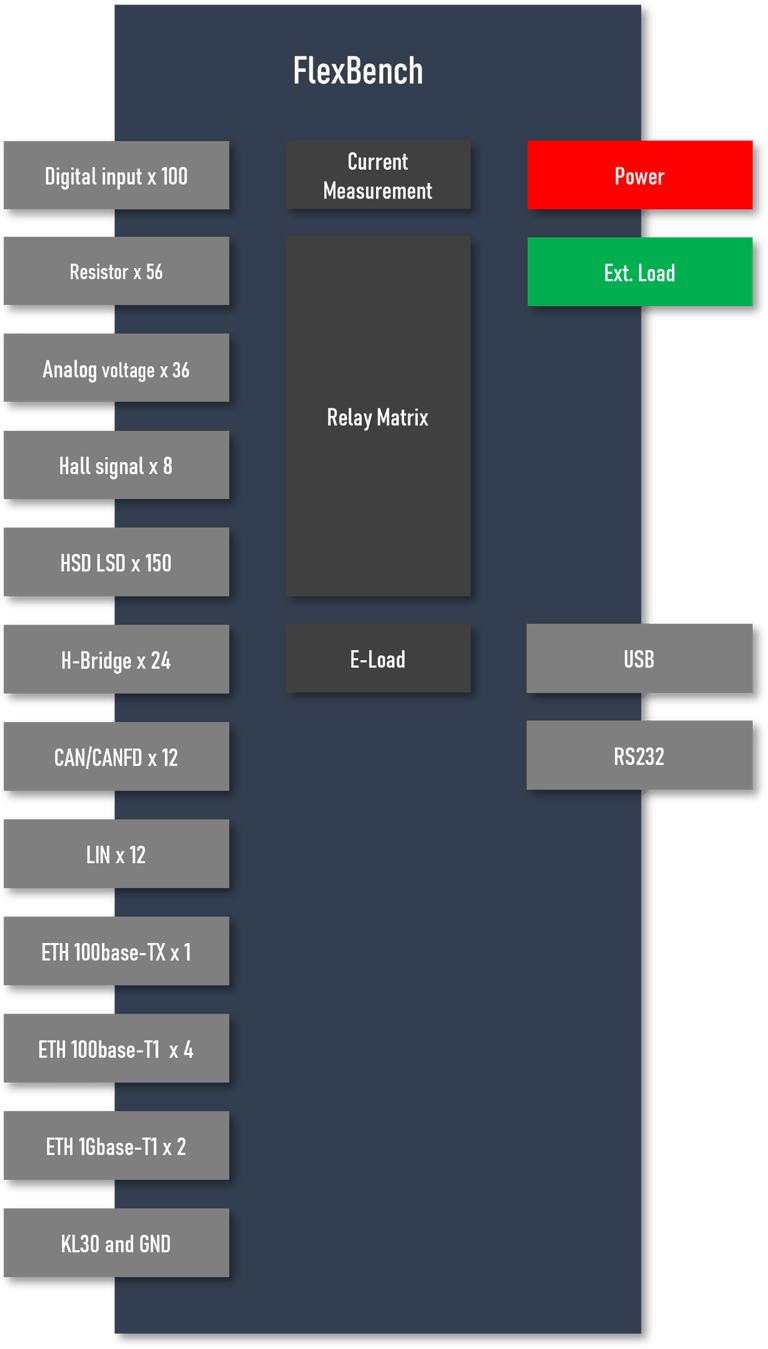

Provides almost 400 IO to realize one bench for all platforms
Digital input, 100 channels
Each channel can be configurable as high, low or PWM. PWM frequency support 80Hz, 100Hz, 200Hz and 2KHz.
Resistor sensor, 56 channels
Half support range up to 10K, and half to 100K. All the accuracy is 5%
Analog voltage input, 36 channels
Support range is from 0V to 5V and accuracy is 5%. And also can be configured as voltage type hall signal.
Hall sensor signal, 8 channels
Simulate current type hall sensor, low level is 5mA and high level is 15mA.
HSD and LSD output, 150 channels
Default load is 1.5K resistor connected, and can switch to shared e-load 0~5A. All support fault injection test.
H-Bridge, 24 channels
Default load is 250ohm resistor, can can switch to shared e-load 0~5A. All support fault injection test.

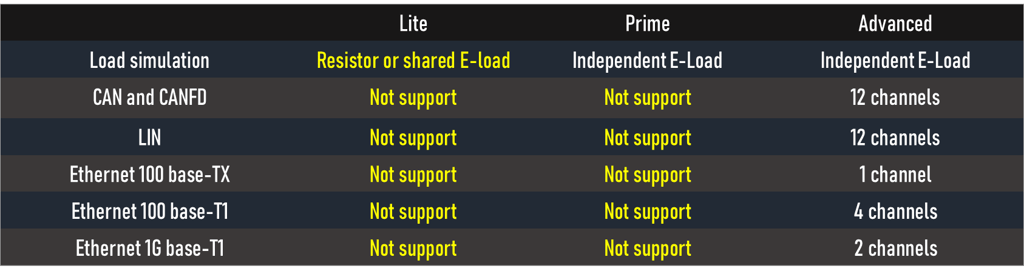

What is the difference among Lite, Prime and Advanced?
Communication, 12 + 12 + 7 channels
12 channels CAN/CANFD, 12 LIN and Ethernet 100base-TX + 100base-T1 x 4 + 1G base-T1 x 2
