The Prime version FlexBench provides dedicated electronic loads (E-Load) on each output channel, enabling precise load current control. It is ideal for hardware and software development, validation testing, and production line end-of-line (EOL) testing, offering enhanced flexibility and testing capability.
FlexBench Prime
Order Code: M00023-001
support 4 weeks free trial
support international shippment
support change based on customized requirement
$7300 USD
（excl. tax）

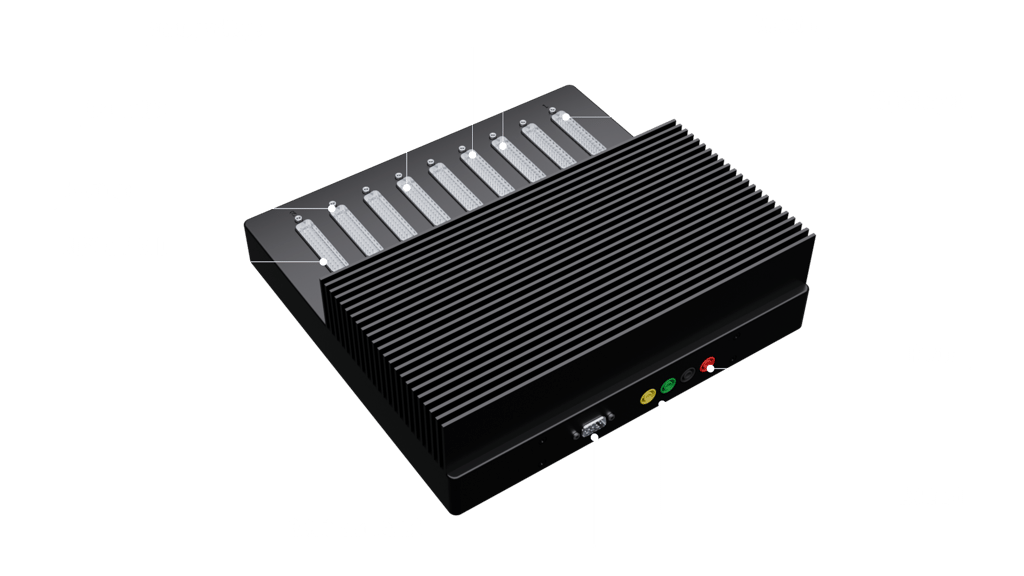

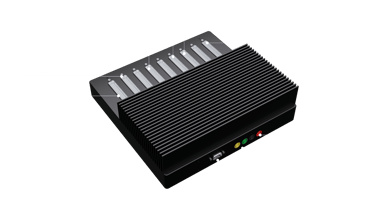

Product Overview
Features configurable by software
Flexible Input
Suitable for HSD, LSD, SPIDER, eFuse and H-Bridge
Simulated by E-load, support fault injection
Multiple Output Mode
Load Simulation
Sleep Current
Integrate 24-bit ADC for easy measurement
Digital high, low or PWM, flexible configurable
KL30 Control

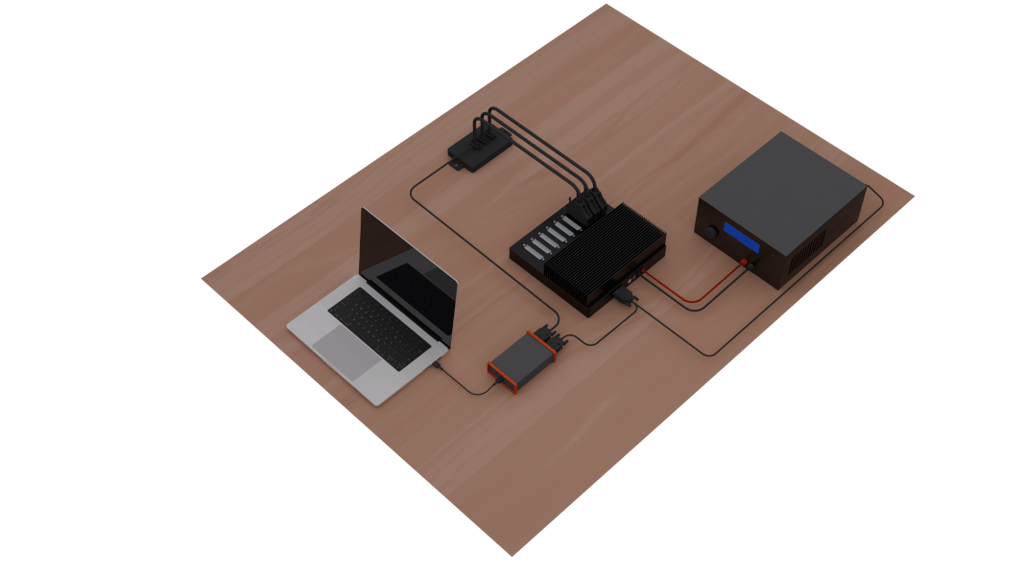

Seamless Integration
RS232 for external power supply adjustment
Bench control command via CANFD communication

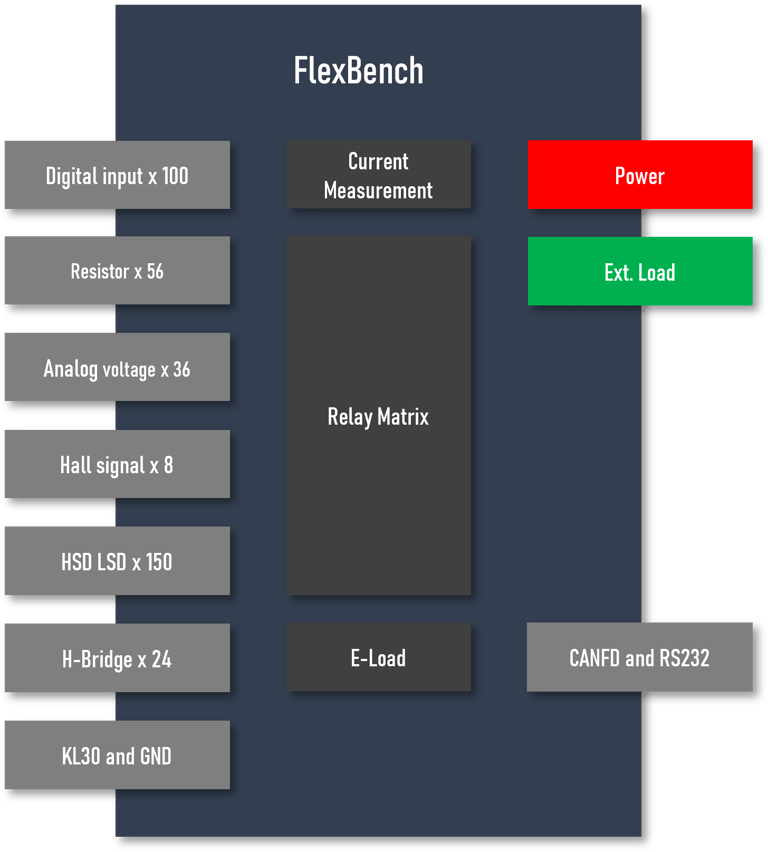

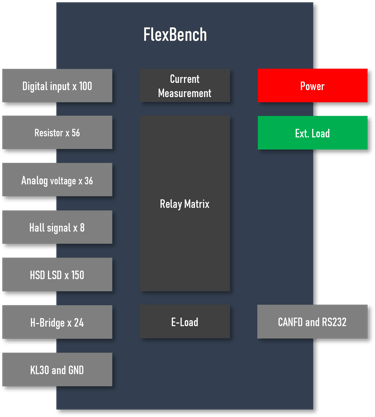

Provides almost 400 IO to realize one bench for all platforms
Digital input, 100 channels
Each channel can be configurable as high, low or PWM. PWM frequency support 80Hz, 100Hz, 200Hz and 2KHz.
Resistor sensor, 56 channels
Half support range up to 10K, and half to 100K. All the accuracy is 5%
Analog voltage input, 36 channels
Support range is from 0V to 5V and accuracy is 5%. And also can be configured as voltage type hall signal.
Hall sensor signal, 8 channels
Simulate current type hall sensor, low level is 5mA and high level is 15mA.
HSD and LSD output, 150 channels
Simulated by e-load 0~5A. All support fault injection test.
H-Bridge, 24 channels
Simulated by e-load 0~5A. All support fault injection test.
What is the difference among Lite, Prime and Advanced?
